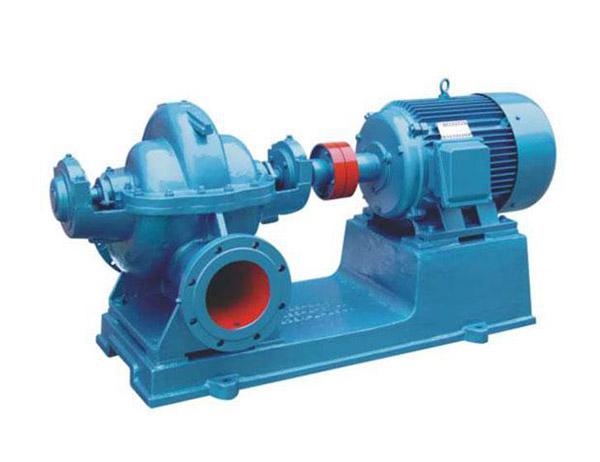

Sh、S、SA系列双吸中开泵

产品型号：Sh、S、SA
产品时间：2021/04/27 10:04:34
简要描述：本系列泵是单级、双吸、水平中开式离心泵，适用于汲送清水和无腐蚀性的液体。介质最高温度80℃。轴承体通人冷却水后，可输送130℃以下的热水。改变密封环、轴套和叶轮的材质，可以输送含有泥沙的浑水。改变承压零件的材质，可以提高泵的进口压力。双吸中开泵|双吸中开泵厂家|双吸中开泵选型|双吸中开泵价格|杭州双吸中开泵

产品简介
性能参数

产品简介

[一]产品简介：双吸中开泵|双吸中开泵厂家|双吸中开泵选型|双吸中开泵价格|杭州双吸中开泵
　　本系列泵是单级、双吸、水平中开式离心泵，适用于汲送清水和无腐蚀性的液体。介质最高温度80℃。轴承体通人冷却水后，可输送130℃以下的热水。改变密封环、轴套和叶轮的材质，可以输送含有泥沙的浑水。改变承压零件的材质，可以提高泵的进口压力。
　　泵的轴封一般采用软填料密封，如有特殊要求，也可改装机械密封。从电机方向看泵，泵为逆时针旋转，按用户要求，也可改为顺时针旋转。
　　根据水泵行业规定，Sh型与S型两大系列中开泵并存，直至统一设计出新型泵代替这两个系列时为止。本产品主要用于工厂、矿山、城市、电站给水农用排涝灌溉、各种水利工程用泵和采暖空调系统等场合，

[二]性能范围：双吸中开泵|双吸中开泵厂家|双吸中开泵选型|双吸中开泵价格|杭州双吸中开泵
　　流量Q112m3/h-6460m3/h,扬程H9m-140m，允许进口压力≤0.3Mpa(用户在订货时须标明进口压力值)。

Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
6Sh-6	126 162 198	84 78 70	2900	72 75 74	5	40 45.8 51.0	250M-2/55	150	150	720
6Sh-6A	112 144 180	67 62 55		68 72 70	5	30 33.8 38.5	225M-2/45			615
6Sh-9	130 170 220	52 47.6 35		74 80 67	5	25.3 27.6 31.3	200L2-2/37			570
6Sh-9A	120 144 180	43.8 40 35		72 75 70	5	18.5 20.9 24.5	200L1-2/30			540
8Sh-6	180 234 288	100 93.5 82.5		62 71 73	4.5	79.1 85.0 88.6	315S-2/110	200	200	1520
8Sh-6A	160 215 265	85.1 75.6 70.2		61 69 71	4.5	60.8 64.2 71.4	280M-2/90			1180
8Sh-9	213 288 351	69 62.5 50		74 80 80.5	5.3 4.5 3	55 61.3 67.8	280S-2/75			1060
8Sh-9A	180 270 324	54.4 46 37.5		65 70 65	5.5 5.0 3.8	41 48.3 51	250M-2/55			905

Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
8sh-13	216 288 342	48 41.3 35	2900	81 85 81	5.0 3.6 1.8	34.9 38.1 40.2	225M-2/45	200	250	750
8sh13-A	198 270 310	43 36 31	2900	76 80 76	5.2 4.2 3.0	30.5 33.1 34.4	200L22/37	200	250	690
10sh-6	360 486 612	71 65.1 56	1450	76 79 72	6	691.5 109 129.6	Y315M-4/132 JS115-4/135	250	250	2070
10sh-6A	342 468 540	61 54 50		74 77 75	6	76.7 89.4 98	Y315S-4/110 JS114-4/115			1690
10sh-9	360 486 612	42.5 38.5 32.5		75 83 80	6	55.5 61.5 67.7	280S-4/75			1350
10sh-9A	324 468 576	35.5 30.5 25		78 85 82	6	40.2 45.7 47.8	250M1-4/45			1180
10sh-13	360 486 576	27 23.5 19		80 86 82	6	33.1 36.2 36.4	225M-4/45			1085
10sh-13A	342 414 482	22.2 20.3 17.4		80 83 80	6	25.8 27.6 28.6	225S-4/37			1050
10sh-19	360 486 576	17.5 14 11		80 85 78	6	21.4 21.8 22.1	200L-4/30			1000
10sh-19A	320 432 504	13.7 11 8.6		78 82 75	6	15.4 15.8 15.8	180L4-4/22			900
12sh-6	590 792 936	98 90 82		74 80 75	5.4 4.5 3.5	213 245 279	Y355-4/315/6KV JS138-4/300/6KV JS128-4/300	300	300	3000 3340 3200
12sh-6A	576 755 918	86 78 70		71 74 71	5.5 4.7 3.6	190 217 246	Y355-4/280/6KV JS137-4/260/6KV JS127-4/260			2950 3040 2900
12sh-6B	540 720 900	72 67 57		76 73 70	5.0 4.9 3.8	151 180 200	Y355-4/280/6KV JS137-4/260/6KV JS127-4/260			2900 3040 2800
12sh-9	576 792 972	65 58 50		80 84 79	4.5	128 149 168	Y355-4/250/6KV JS137-4/260/6KV JS117-4/180			2580 2870 2650
12sh-9A	530 720 893	55 49 42		80 83 78	4.5	99.2 116 131	Y315L1-4/160 JS116-4/155			1860 1800
12sh-9B	504 684 835	47.2 43 37		79 82 78	4.5	82.5 97.7 108	Y315M-4/132 JS115-4/135			1860 1830
12sh-13	612 792 900	38 32.2 25.5		83 87 80	4.5	76.2 79.8 78.1	280M-4/90			1880
12sh-13A	550 720 810	31 26 20.5		80 84 78	4.5	58 60.7 58.1	280S-4/75			1780
12sh-19	612 792 935	23 19.4 14		81 84 75	4.5	47.3 49.8 47.6	250M-4/55			1515
12sh-19A	504 720 900	20 16 11.5		79 82 75	4.5	34.8 38.3 37.6	225M-4/45			1380
12sh-28	611 792 900	14.5 12 10		80 83 74	4.5	30.3 31.2 33.1	225S-4/37			1345
12sh-28A	522 685 792	11.8 10 8.7		75 80 77	4.5	22.4 23.3 24.4	200L-4/30			1330
Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
14sh-6	850 1250 1663	140 125 100	1470	72 81 73	3.5	450 525 620	Y450-4/710/6KV JS158-4/680/6KV	350	350	1580
14sh-6A	800 1180 1570	125 112 90		70 78 70	3.5	39.1 462 550	Y150-4/630/6KV JS158-4/680/6KV			1580
14sh-6B	745 1100 1460	108 96 77		70 77 72.5	3.5	313 373 422	Y400-4/500/6KV JS1410-4/500/6KV			1580
14sh-9	972 1260 1440	80 75 65		79 84 80	3.5	268 306 319	Y400-4/400/6KV JS148/-4/440/6KV			1200
14sh-9A	900 1170 1330	70 65 56		78 84 79	3.5	220 247 257	Y355-4/315/6KV JS138-4/300/6KV JS128-4/300			1200
14sh-9B	826 1080 1225	59 55 47.5		75 82 77	3.5	178 198 206	Y355-4/315/6KV JS137-4/260/6KV JS127-4/260			1200
14sh-13	972 1260 1480	50 43.8 37		81 84 79	3.5	164 179 188	Y355-4/220/6KV JS136-4/220/6KV JS126-4/225			1105
14sh-13A	864 1120 1330	41 36 30		80 84 79	3.5	121 130 136	Y355-4/220/6KV JS136-4/220/6KV JS126-4/125			1105
14sh-19	971 1260 1440	32 26 22		85 88 82	3.5	99.7 102 95.7	Y315M-4/132 JS115-4/135			880
14sh-19A	864 1120 1296	26 21.5 16.5		80 85 73	3.5	76.5 77 80	Y315S-4/110 JS114-4/115			880
14sh-28	971 1260 1440	20 16.2 13.4		82 85 75	3.5	64.4 65.3 70	280S-4/75			760
14sh-28A	864 1044 1260	16 13.4 10		75 80 71	3.5	50.2 47.6 48.4	250M-4/55			760
20sh-6	1450 2016 2300	108 98.4 89	970	72.5 79.5 76	4	585 680 735	Y500-6/800/6KV	500	500	4330
20sh-6A	1349 1870 2140	93 85 77		70 77 74	3.6	490 564 607	Y450-6/500/6KV JS1510-6/650/6KV			4330
20sh-9	1150 2016 2450	66 59 50		82 83 77	4	340 390 433	Y450-6/500/6KV JS158-6/550/6KV			2750
20sh-9A	1405 1910 2270	58 50 42		74 75 72	4	300 347 360	Y400-6/400/6KV JS1410-6/380/6KV			2750
20sh-9B	1763	42		74	4	273	Y400-6/355/6KV JS1410-6/380/6KV			2750
20sh-13	1550 2016 2410	40 35.1 30		82 88 80	4	20 219 247	Y400-6/280/6KV JS148-6/310/6KV JS137-6/280			2340
20sh-13A	1870	31		85	4	186	Y355-6/250/6KV JS148-6/310/6KV JS136-6/240		400	2340
20sh-19	1620 2016 2340	27 22 15		80 82 70	4	148 147 137	JS136-6/180/6KV JS127-6/185			2010
20sh-19A	1296 1870 2016	23 17 14		73 80 76	4	111 108 101	Y315LM-3/132 JS125-6/130			2010
20sh-28	1620 2016 2325	15.2 12.8 10.6		85 89 86	4	78.9 79 78	Y315LM-6/110 JS117-6/115			2000
Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
20sh-9	2750 3420 3930	87 71 60	960	87 91 88	1.3	689 727 730	Y500-6/900/6KV	600	500	4300
24sh-9A	2550 3168 3640	64 61 53	960	86 90 86	2.5	516 585 610	Y500-6/710/6KV JS1512-6/780/6KV			4300
24sh-9(J)	2600	39	730	90	4.8	319	Y450-8/40/6KV JS380-8/380/6KV			4300
24sh-13	3502 3168 3499	56 47.4 38	970	83 88 80	2.5	460 465 426	Y450-6/560/6KV JS158-6/560/6KV			3200
24sh-19	2480 3170 3960	37 32 22		86 89 85	2.5	295 310 279	Y400-6/400/6KV JS1410-6/380/6KV		500	2550
24sh-19A	2304 2880 3600	31.5 27 20		84 89 85	2.5	235 238 231	Y400-6/280/6KV JS148-6/310/6KV JS137-6/280			2550
24sh-28	2340 2880 3420	23.5 21 18		80 85 81	2.5	187 195 207	Y355-6/250/6KV JS136-6/240			2500
24sh-28A	2340 2880 3420	17.5 15.5 13		77 82 79	2.5	145 148 154	Y355-6/220/6KV JS136-6/180/6KV JS127-6/185			2500
32sh-19	4700 5500 6010 6460	35 32.5 28.9 25.4	730	78 84 84 80	3.5	575 580 567 567	Y500-8/630/6KV JS1512-8/630/6KV	800	600	5100
32sh-19A	4550 5310 5800 6250	31 29 26.5 23	730	78 84 84 80	3.5	492 500 496 487	Y500-8/560/6KV JS1512-8/570/6KV	800	600	5100

双吸中开泵|双吸中开泵厂家|双吸中开泵选型|双吸中开泵价格|杭州双吸中开泵

型号意义

选型范围

性能参数

Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
6Sh-6	126 162 198	84 78 70	2900	72 75 74	5	40 45.8 51.0	250M-2/55	150	150	720
6Sh-6A	112 144 180	67 62 55		68 72 70	5	30 33.8 38.5	225M-2/45			615
6Sh-9	130 170 220	52 47.6 35		74 80 67	5	25.3 27.6 31.3	200L2-2/37			570
6Sh-9A	120 144 180	43.8 40 35		72 75 70	5	18.5 20.9 24.5	200L1-2/30			540
8Sh-6	180 234 288	100 93.5 82.5		62 71 73	4.5	79.1 85.0 88.6	315S-2/110	200	200	1520
8Sh-6A	160 215 265	85.1 75.6 70.2		61 69 71	4.5	60.8 64.2 71.4	280M-2/90			1180
8Sh-9	213 288 351	69 62.5 50		74 80 80.5	5.3 4.5 3	55 61.3 67.8	280S-2/75			1060
8Sh-9A	180 270 324	54.4 46 37.5		65 70 65	5.5 5.0 3.8	41 48.3 51	250M-2/55			905

Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
8sh-13	216 288 342	48 41.3 35	2900	81 85 81	5.0 3.6 1.8	34.9 38.1 40.2	225M-2/45	200	250	750
8sh13-A	198 270 310	43 36 31	2900	76 80 76	5.2 4.2 3.0	30.5 33.1 34.4	200L22/37	200	250	690
10sh-6	360 486 612	71 65.1 56	1450	76 79 72	6	691.5 109 129.6	Y315M-4/132 JS115-4/135	250	250	2070
10sh-6A	342 468 540	61 54 50		74 77 75	6	76.7 89.4 98	Y315S-4/110 JS114-4/115			1690
10sh-9	360 486 612	42.5 38.5 32.5		75 83 80	6	55.5 61.5 67.7	280S-4/75			1350
10sh-9A	324 468 576	35.5 30.5 25		78 85 82	6	40.2 45.7 47.8	250M1-4/45			1180
10sh-13	360 486 576	27 23.5 19		80 86 82	6	33.1 36.2 36.4	225M-4/45			1085
10sh-13A	342 414 482	22.2 20.3 17.4		80 83 80	6	25.8 27.6 28.6	225S-4/37			1050
10sh-19	360 486 576	17.5 14 11		80 85 78	6	21.4 21.8 22.1	200L-4/30			1000
10sh-19A	320 432 504	13.7 11 8.6		78 82 75	6	15.4 15.8 15.8	180L4-4/22			900
12sh-6	590 792 936	98 90 82		74 80 75	5.4 4.5 3.5	213 245 279	Y355-4/315/6KV JS138-4/300/6KV JS128-4/300	300	300	3000 3340 3200
12sh-6A	576 755 918	86 78 70		71 74 71	5.5 4.7 3.6	190 217 246	Y355-4/280/6KV JS137-4/260/6KV JS127-4/260			2950 3040 2900
12sh-6B	540 720 900	72 67 57		76 73 70	5.0 4.9 3.8	151 180 200	Y355-4/280/6KV JS137-4/260/6KV JS127-4/260			2900 3040 2800
12sh-9	576 792 972	65 58 50		80 84 79	4.5	128 149 168	Y355-4/250/6KV JS137-4/260/6KV JS117-4/180			2580 2870 2650
12sh-9A	530 720 893	55 49 42		80 83 78	4.5	99.2 116 131	Y315L1-4/160 JS116-4/155			1860 1800
12sh-9B	504 684 835	47.2 43 37		79 82 78	4.5	82.5 97.7 108	Y315M-4/132 JS115-4/135			1860 1830
12sh-13	612 792 900	38 32.2 25.5		83 87 80	4.5	76.2 79.8 78.1	280M-4/90			1880
12sh-13A	550 720 810	31 26 20.5		80 84 78	4.5	58 60.7 58.1	280S-4/75			1780
12sh-19	612 792 935	23 19.4 14		81 84 75	4.5	47.3 49.8 47.6	250M-4/55			1515
12sh-19A	504 720 900	20 16 11.5		79 82 75	4.5	34.8 38.3 37.6	225M-4/45			1380
12sh-28	611 792 900	14.5 12 10		80 83 74	4.5	30.3 31.2 33.1	225S-4/37			1345
12sh-28A	522 685 792	11.8 10 8.7		75 80 77	4.5	22.4 23.3 24.4	200L-4/30			1330
Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
14sh-6	850 1250 1663	140 125 100	1470	72 81 73	3.5	450 525 620	Y450-4/710/6KV JS158-4/680/6KV	350	350	1580
14sh-6A	800 1180 1570	125 112 90		70 78 70	3.5	39.1 462 550	Y150-4/630/6KV JS158-4/680/6KV			1580
14sh-6B	745 1100 1460	108 96 77		70 77 72.5	3.5	313 373 422	Y400-4/500/6KV JS1410-4/500/6KV			1580
14sh-9	972 1260 1440	80 75 65		79 84 80	3.5	268 306 319	Y400-4/400/6KV JS148/-4/440/6KV			1200
14sh-9A	900 1170 1330	70 65 56		78 84 79	3.5	220 247 257	Y355-4/315/6KV JS138-4/300/6KV JS128-4/300			1200
14sh-9B	826 1080 1225	59 55 47.5		75 82 77	3.5	178 198 206	Y355-4/315/6KV JS137-4/260/6KV JS127-4/260			1200
14sh-13	972 1260 1480	50 43.8 37		81 84 79	3.5	164 179 188	Y355-4/220/6KV JS136-4/220/6KV JS126-4/225			1105
14sh-13A	864 1120 1330	41 36 30		80 84 79	3.5	121 130 136	Y355-4/220/6KV JS136-4/220/6KV JS126-4/125			1105
14sh-19	971 1260 1440	32 26 22		85 88 82	3.5	99.7 102 95.7	Y315M-4/132 JS115-4/135			880
14sh-19A	864 1120 1296	26 21.5 16.5		80 85 73	3.5	76.5 77 80	Y315S-4/110 JS114-4/115			880
14sh-28	971 1260 1440	20 16.2 13.4		82 85 75	3.5	64.4 65.3 70	280S-4/75			760
14sh-28A	864 1044 1260	16 13.4 10		75 80 71	3.5	50.2 47.6 48.4	250M-4/55			760
20sh-6	1450 2016 2300	108 98.4 89	970	72.5 79.5 76	4	585 680 735	Y500-6/800/6KV	500	500	4330
20sh-6A	1349 1870 2140	93 85 77		70 77 74	3.6	490 564 607	Y450-6/500/6KV JS1510-6/650/6KV			4330
20sh-9	1150 2016 2450	66 59 50		82 83 77	4	340 390 433	Y450-6/500/6KV JS158-6/550/6KV			2750
20sh-9A	1405 1910 2270	58 50 42		74 75 72	4	300 347 360	Y400-6/400/6KV JS1410-6/380/6KV			2750
20sh-9B	1763	42		74	4	273	Y400-6/355/6KV JS1410-6/380/6KV			2750
20sh-13	1550 2016 2410	40 35.1 30		82 88 80	4	20 219 247	Y400-6/280/6KV JS148-6/310/6KV JS137-6/280			2340
20sh-13A	1870	31		85	4	186	Y355-6/250/6KV JS148-6/310/6KV JS136-6/240		400	2340
20sh-19	1620 2016 2340	27 22 15		80 82 70	4	148 147 137	JS136-6/180/6KV JS127-6/185			2010
20sh-19A	1296 1870 2016	23 17 14		73 80 76	4	111 108 101	Y315LM-3/132 JS125-6/130			2010
20sh-28	1620 2016 2325	15.2 12.8 10.6		85 89 86	4	78.9 79 78	Y315LM-6/110 JS117-6/115			2000
Ty	Q (m3/h)	H (m)	n (r/min)	E (%)	Hs (m)	N (KW)	M/kw	DR (mm)	DC (mm)	W (kg)
20sh-9	2750 3420 3930	87 71 60	960	87 91 88	1.3	689 727 730	Y500-6/900/6KV	600	500	4300
24sh-9A	2550 3168 3640	64 61 53	960	86 90 86	2.5	516 585 610	Y500-6/710/6KV JS1512-6/780/6KV			4300
24sh-9(J)	2600	39	730	90	4.8	319	Y450-8/40/6KV JS380-8/380/6KV			4300
24sh-13	3502 3168 3499	56 47.4 38	970	83 88 80	2.5	460 465 426	Y450-6/560/6KV JS158-6/560/6KV			3200
24sh-19	2480 3170 3960	37 32 22		86 89 85	2.5	295 310 279	Y400-6/400/6KV JS1410-6/380/6KV		500	2550
24sh-19A	2304 2880 3600	31.5 27 20		84 89 85	2.5	235 238 231	Y400-6/280/6KV JS148-6/310/6KV JS137-6/280			2550
24sh-28	2340 2880 3420	23.5 21 18		80 85 81	2.5	187 195 207	Y355-6/250/6KV JS136-6/240			2500
24sh-28A	2340 2880 3420	17.5 15.5 13		77 82 79	2.5	145 148 154	Y355-6/220/6KV JS136-6/180/6KV JS127-6/185			2500
32sh-19	4700 5500 6010 6460	35 32.5 28.9 25.4	730	78 84 84 80	3.5	575 580 567 567	Y500-8/630/6KV JS1512-8/630/6KV	800	600	5100
32sh-19A	4550 5310 5800 6250	31 29 26.5 23	730	78 84 84 80	3.5	492 500 496 487	Y500-8/560/6KV JS1512-8/570/6KV	800	600	5100
