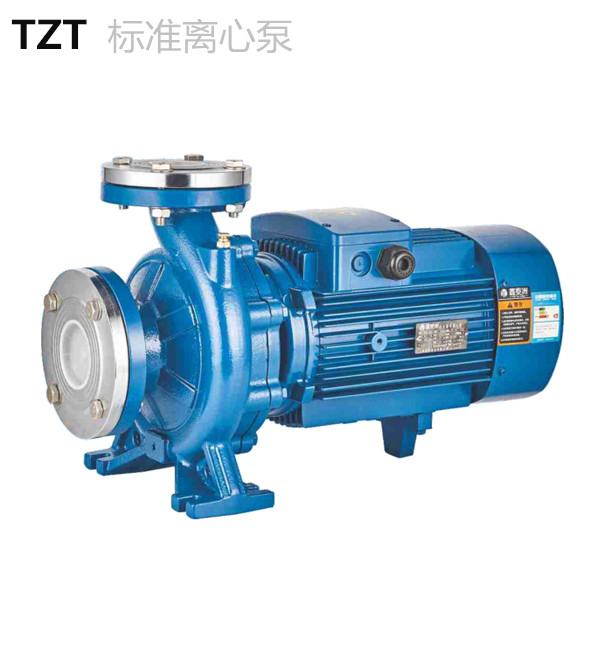

卧式管道离心泵产品特点:
1、运行平稳：泵轴的绝对同心度叶轮优异的动静平衡，保证平稳运行，绝无振动。
2、滴水不漏：不同材质的硬质合金密封，保证了不同介质输送均无泄漏。
3、噪音低：两个低噪音轴承下的水泵，运转平稳，除电机微弱声响，基本无噪声。
4、故障率低：结构简单合理，关键部分采用国际一流品质配套，整机无故障工作时间大大提高。
5、维修方便：更换密封、轴承、简易方便。
6、占地更省：出口可向左、向右、向上三个方向，便于管道布置安装，节省空间。
7、供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市供水，高层建筑增压送水，园林喷灌，消防增压，远距离输送，暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度T≤80℃。
8、广泛适用于:冶金、化工、纺织、造纸、以及宾馆饭店等锅炉热水增压循环输送及城市采暖系统，ISWR型使用温度T≤120℃。
9、供输送不含固体颗粒，具有腐蚀性、粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为-20℃～+120℃。
10、供输送汽油、煤油、柴油等油类产品或易燃、晚爆液体，被输送介质温度为-20℃～+120℃。
ISW管道离心泵参数：
| 型号 |
流量 Q | 扬程 (m) |
效率 (％) |
转速 (r/min) |
电机功率(kW) |
允许汽蚀余量(m) |
|
| (m3/h) | (L/s) | ||||||
| ISW40-100 |
3.75 6.3 7.5 |
1.04 1.75 2.08 |
13.2 12.5 11.5 |
46 54 53 |
2900 |
0.75 |
2.3 |
| ISW40-125 |
3.75 6.3 7.5 |
1.04 1.75 2.08 |
21.5 20 18.5 |
40 46 44 |
2900 |
1.1 |
2.3 |
| ISW40-125A |
3.2 5.6 6.4 |
0.89 1.56 1.78 |
18 16 14.5 |
40 45 42 |
2900 |
0.75 |
2.3 |
| ISW40-160 |
3.75 6.3 7.5 |
1.04 1.75 2.08 |
34 32 30 |
34 40 40 |
2900 |
2.2 |
2.3 |
| ISW40-160A |
3.5 5.9 7.0 |
0.97 1.64 1.94 |
29 28 26.5 |
33 39 39 |
2900 |
1.5 |
2.3 |
| ISW40-160B |
3.2 5.2 6.5 |
0.89 1.53 1.8 |
25.5 24 23 |
34 38 37 |
2900 |
1.1 |
2.3 |
| ISW40-200 |
3.75 6.3 7.5 |
1.04 1.75 2.08 |
52 50 48 |
25 33 32 |
2900 |
4.0 |
2.3 |
| ISW40-200A |
3.5 5.9 7.0 |
0.97 1.64 1.94 |
45.5 44 42 |
26 31 32 |
2900 |
3.0 |
2.3 |
| ISW40-200B |
3.2 5.5 6.5 |
0.89 1.53 1.80 |
39 38 36.5 |
25 31 32 |
2900 |
2.2 |
2.3 |
| ISW40-250 |
3.75 6.3 7.5 |
1.04 1.75 2.08 |
82 80 74 |
23 28 28 |
2900 |
7.5 |
2.3 |
| ISW40-250A |
3.5 5.9 7.0 |
0.97 1.64 1.94 |
72 70 67 |
24 28 27 |
2900 |
5.5 |
2.3 |
| ISW40-250B |
3.2 5.5 6.5 |
0.89 1.53 1.80 |
62 60 57 |
23 27 27 |
2900 |
4.0 |
2.3 |
| ISW40-100(I) |
7.5 12.5 15 |
2.08 3.47 4.17 |
13.6 12,5 11,5 |
55 62 60 |
2900 |
1.1 |
2.3 |
| ISW40-100(I)A |
6.5 11.2 13.0 |
1.8 3.11 3.61 |
11.5 10 9 |
50 60 58 |
2900 |
0.75 |
2.3 |
| ISW40-125(I) |
7.5 12.5 15 |
2.08 3.47 4.17 |
21.5 20 18.5 |
48 58 57 |
2900 |
1.5 |
2.3 |
| ISW40-125(I)A |
6.5 11.2 13.0 |
1.8 3.11 3.61 |
18.5 17.2 15.5 |
45 56 56 |
2900 |
1.1 |
2.3 |
| ISW40-160(I) |
7.5 12.5 15 |
2.08 3.47 4.17 |
33.5 32 30.5 |
45 52 52 |
2900 |
3.0 |
2.3 |
| ISW40-160(I)A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
29.5 28 26.5 |
44 51 50 |
2900 |
2.2 |
2.3 |
| ISW40-160(I)B |
6.5 10.5 13.0 |
1.8 2.92 3.61 |
23.5 22.5 21.0 |
41 50 50 |
2900 |
1.5 |
2.3 |
| ISW40-200(I) |
7.5 12.5 15 |
2.08 3.47 4.17 |
52 50 48 |
36 46 46 |
2900 |
5.5 |
2.3 |
| ISW40-200(I)A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
45.5 44.5 42.5 |
35 45 46 |
2900 |
4.0 |
2.3 |
| 型号 |
流量 Q | 扬程 (m) |
效率 (％) |
转速 (r/min) |
电机功率(kW) |
允许汽蚀余量(m) |
|
| (m3/h) | (L/s) | ||||||
| ISW40-200(0B |
6.5 10.5 13.0 |
1.8 2.92 3.61 |
36.5 35 33.5 |
33 44 43 |
2900 |
3.0 |
2.3 |
| ISW40-250(I) |
7.5 12.5 15 |
2.08 3.47 4.17 |
82 80 78.5 |
28.5 38 41 |
2900 |
11.0 |
2.3 |
| ISW40-250(I)A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
71.5 70 68.5 |
27 38 40 |
2900 |
7.5 |
2.3 |
| ISW40-250(I)B |
6.5 10.8 13.0 |
1.8 3.0 3.61 |
62 60 58 |
26 37 36 |
2900 |
7.5 |
2.3 |
| ISW40-250(I)C |
6 10 12 |
1.66 2.77 3.33 |
53.3 52 51 |
36 |
2900 |
5.5 |
2.3 |
| ISW50-100 |
7.5 12.5 15 |
2.08 3.47 4.17 |
13.6 12.5 11.5 |
55 62 60 |
2900 |
1.1 |
2.3 |
| ISW50-100A |
6.5 11.2 13.0 |
1.8 3.11 3.61 |
11.5 10 9 |
50 60 58 |
2900 |
0.75 |
2.3 |
| ISW50-125 |
7.5 12.5 15 |
2.08 3.47 4.17 |
21.5 20 18.5 |
48 58 57 |
2900 |
1.5 |
2.3 |
| ISW50-125A |
6.5 11.2 13.0 |
1.8 3.11 3.61 |
18.5 17.2 15.5 |
45 56 56 |
2900 |
1.1 |
2.3 |
| ISW50-160 |
7.5 12.5 15 |
2.08 3.47 4.17 |
33.5 32 30.5 |
45 52 52 |
2900 |
3.0 |
2.3 |
| ISW50-160A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
29.5 28 26.5 |
44 51 50 |
2900 |
2.2 |
2.3 |
| ISW50-160B |
6.5 10.5 13.0 |
1.8 2.92 3.61 |
23.5 22.5 21.0 |
42 50 50 |
2900 |
1.5 |
2.3 |
| ISW50-200 |
7.5 12.5 15 |
2.08 3.47 4.17 |
52 50 48 |
36 46 46 |
2900 |
5.5 |
2.3 |
| ISW50-200A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
45.5 44.5 42.5 |
35 45 46 |
2900 |
4.0 |
2.3 |
| ISW50-200B |
6.5 10.5 13.0 |
1.8 2.92 3.61 |
36.5 35 33.5 |
33 44 43 |
2900 |
3.0 |
2.3 |
| ISW50-250 |
7.5 12.5 15 |
2.08 3.47 4.17 |
82 80 78.5 |
28.5 38 41 |
2900 |
11.0 |
2.3 |
| ISW50-250A |
7.0 11.7 14.0 |
1.94 3.25 3.89 |
71.5 70 68.5 |
27 38 40 |
2900 |
7.5 |
2.3 |
| ISW50-250B |
6.5 10.8 13.0 |
1.8 3.0 3.61 |
62 60 58 |
26 37 36 |
2900 |
7.5 |
2.3 |
| ISW50-250C |
6 10 12 |
1.66 2.77 3.33 |
53.3 52 51 |
36 |
2900 |
5.5 |
2.3 |
| ISW50-100(I) |
15 25 30 |
4.17 6.94 8.33 |
14.0 12.5 11.0 |
65 69 69 |
2900 |
1.5 |
2.5 |
| ISW50-100(I)A |
13.5 22.4 27.0 |
3.75 6.22 7.5 |
12 10 8.5 |
60 67 68 |
2900 |
1.1 |
2.5 |
| ISW50-125(I) |
15 25 30 |
4.17 6.94 8.33 |
21.8 20 18.5 |
60 68 67 |
2900 |
3.0 |
2.5 |
| ISW50-125(I)A |
13.5 22.4 27.0 |
3.75 6.22 7.5 |
18 16 14 |
60 66 65 |
2900 |
2.2 |
2.5 |
| ISW50-160(I) |
15 25 30 |
4.17 6.94 8.33 |
35 32 30 |
52 63 65 |
2900 |
4.0 |
2.5 |
| ISW50-160(I)A |
14.0 23.4 28 |
3.89 6.5 7.78 |
30 28 26 |
62 |
2900 |
4.0 |
2.5 |
| ISW50-160(I)B |
13.0 21.6 26 |
3.6 6.0 7.2 |
26 24 22 |
58 |
2900 |
3.0 |
2.5 |
| ISW50-200(I) |
15 25 30 |
4.17 6.94 8.33 |
53 50 47 |
48 58 59 |
2900 |
7.5 |
2.5 |
| ISW50-200(I)A |
14.0 23.4 28 |
3.89 6.5 7.78 |
45.5 44 42 |
48 57 58 |
2900 |
7.5 |
2,5 |
| ISW50-200(I)B |
13.0 21.6 26 |
3.6 6.0 7.2 |
39 37 35 |
55 |
2900 |
5.5 |
2.5 |
| ISW50-250(I) |
15 25 30 |
4.17 6.94 8.33 |
82 80 78 |
36 52 50 |
2900 |
15 |
2,5 |
| ISW50-250(I)A |
14.0 23.4 28 |
3.89 6.5 7.78 |
72 70 68 |
38 50 52 |
2900 |
11.0 |
2.5 |
| 型号 |
流量 Q | 扬程 (m) | 效率 (％) | 转速 (r/min) | 电机功率(kW) |
允许汽蚀余量(m) |
|
| (m3/h) | (L/s) | ||||||
| ISW50-250(I)B |
13.0 21.6 26 |
3.6 6.0 7.2 |
63 60 58 |
40 49 50 |
2900 |
11.0 |
2.5 |
| ISW50-315(I) |
15 25 30 |
4.17 6.94 8.33 |
127 125 123 |
28 40 44 |
2900 |
30 |
2.5 |
| ISW50-315(I)A |
14.0 23.4 28 |
3.89 6.5 7.78 |
113 110 108 |
30 40 44 |
2900 |
22 |
2.5 |
| ISW50-315(I)B |
13.0 21.6 26 |
3.6 6.0 7.2 |
95 93 90 |
26 38 40 |
2900 |
18.5 |
2.5 |
| ISW50-315(I)C |
12.4 20.6 24.7 |
3.44 5.72 6.86 |
86.3 85 83.6 |
38 |
2900 |
15 |
2.5 |
| ISW65-100 |
15 25 30 |
4.17 6.94 8.33 |
14.0 12.5 11.0 |
65 69 69 |
2900 |
1.5 |
2.5 |
| ISW65-100A |
13.5 22.4 27.0 |
3.75 6.22 7.5 |
12 10 8.5 |
60 67 68 |
2900 |
1.1 |
2.5 |
| ISW65-125 |
15 25 30 |
4.17 6.94 8.33 |
21.8 20 18.5 |
60 68 67 |
2900 |
3.0 |
2.5 |
| ISW65-125A |
13.5 22.4 27 |
3.75 6.22 7.5 |
18 16 14 |
60 66 65 |
2900 |
2.2 |
2.5 |
| ISW65-160 |
15 25 30 |
4.17 6.94 8.33 |
35 32 30 |
52 63 65 |
2900 |
4.0 |
2.5 |
| ISW65-160A |
14.0 23.4 28 |
3.89 6.5 7.78 |
30 28 26 |
62 |
2900 |
4.0 |
2_5 |
| ISW65-160B |
13.0 21.6 26 |
3.6 6.0 7.2 |
26 24 22 |
58 |
2900 |
3.0 |
2.5 |
| ISW65-200 |
15 25 30 |
4.17 6.94 8.33 |
53 50 47 |
48 58 59 |
2900 |
7.5 |
2.5 |
| ISW65-200A |
14,0 23.4 28 |
3.89 6.5 7.78 |
45.5 44 42 |
48 57 58 |
2900 |
7.5 |
2.5 |
| ISW65-200B |
13.0 21.6 26 |
3.6 6.0 7.2 |
39 37 35 |
55 |
2900 |
5.5 |
2.5 |
| ISW65-250 |
15 25 30 |
4.17 6.94 8.33 |
82 80 78 |
36 52 50 |
2900 |
15 |
2.5 |
| ISW65-250A |
14 23.4 28 |
3.89 6.5 7.78 |
72 70 68 |
38 50 52 |
2900 |
11.0 |
2.5 |
| ISW65-250B |
13.0 21.6 26 |
3.6 6.0 7.2 |
63 60 58 |
40 49 50 |
2900 |
11.0 |
2.5 |
| ISW65-315 |
15 25 30 |
4.17 6.94 8.33 |
127 125 123 |
28 40 44 |
2900 |
30 |
2.5 |
| ISW65-315A |
14.0 23.4 28 |
3.89 6.5 7.78 |
113 110 108 |
30 40 44 |
2900 |
22 |
2.5 |
| ISW65-315B |
13.0 21.6 26 |
3.6 6.0 7.2 |
95 93 90 |
26 38 40 |
2900 |
18.5 |
2.5 |
| ISW65-315C |
12.4 20.6 24.7 |
3.44 5.77 6.86 |
86.3 85 83.6 |
38 |
2900 |
15 |
2.5 |
| ISW65-100(I) |
30 50 60 |
8.3 13.9 16.7 |
14.0 12.5 10.5 |
65 73 73 |
2900 |
3,0 |
3.0 |
| ISW65-100(I)A |
27 44.8 54 |
7.5 12.4 15 |
11.5 10 8.5 |
64 72 70 |
2900 |
2,2 |
3.0 |
| ISW65-125(I) |
30 50 60 |
8.3 13.9 16.7 |
22.5 20 18 |
62 73 72 |
2900 |
5.5 |
3.0 |
| ISW65-125(I)A |
27 44.8 54 |
7.5 12.4 15 |
18 16 14 |
60 72 71 |
2900 |
4,0 |
3.0 |
| ISW65-160(I) |
30 50 60 |
8.3 13.9 16.7 |
36 32 29 |
63 72 72 |
2900 |
7.5 |
3.0 |
| ISW65-160(I)A |
28 46.8 56 |
7.78 13.0 15.6 |
32 28 26 |
62 70 72 |
2900 |
7.5 |
‘3.0 |
| ISW65-160(I)B |
26 43.2 52 |
7.5 12.0 14.4 |
27 24 22 |
60 70 71 |
2900 |
5.5 |
3.0 |
| ISW65-200(I) |
30 50 60 |
8.3 13.9 16.7 |
53 50 47 |
54 68 70 |
2900 |
15.0 |
3.0 |
| ISW65-200(I)A |
28 46.8 56 |
7.78 13.0 15.6 |
46 44 42 |
53 68 70 |
2900 |
11.0 |
3.0 |
| 型号 |
流量 Q | 扬程 (m) |
效率 (％) |
转速 (r/min) |
电机功率(kW) |
允许汽蚀余量(m) |
|
| (m3/h) | (L/s) | ||||||
| ISW65-200(I)B |
26 43 52 |
7.2 11.9 14.4 |
40 37 34 |
52 66 68 |
2900 |
7.5 |
3.0 |
| ISW65-250(I) |
30 50 60 |
8.3 13.9 16.7 |
84 80 75 |
51 62 63 |
2900 |
22.0 |
3.0 |
| ISW65-250(I)A |
28 46.8 56 |
7.78 13.0 15.6 |
73 70 65 |
50 61 61 |
2900 |
18.5 |
3.0 |
| ISW65-250(I)B |
26 43 52 |
7.2 11.9 14.4 |
63 60 56 |
50 60 60 |
2900 |
15.0 |
3.0 |
| ISW65-315(I) |
30 50 60 |
8.3 13.9 16.7 |
128 125 123 |
41 54 57 |
2900 |
37.0 |
3.0 |
| ISW65-315(I)A |
27.5 45.8 55 |
7.64 12.7 15.3 |
107.5 105 103 |
40 53 54 |
2900 |
30.0 |
3.0 |
| ISW65-315(I)B |
26 43 52 |
7.2 11.9 14.4 |
96.5 93 91 |
41 53 53 |
2900 |
30.0 |
3.0 |
| ISW65-315(I)C |
24.7 41.3 49.5 |
6.86 11.5 3.8 |
87 85 83.6 |
51 |
2900 |
22 |
3.0 |
| ISW80-100 |
30 50 60 |
8,3 13.9 16.7 |
14 12.5 10.5 |
65 73 73 |
2900 |
3.0 |
3.0 |
| ISW80-100A |
27 44.8 54 |
7.5 12.4 15 |
11.5 10 8.5 |
64 72 70 |
2900 |
2.2 |
3.0 |
| ISW80-125 |
30 50 60 |
8.3 13.9 16.7 |
22.5 20 18 |
62 73 72 |
2900 |
5.5 |
3.0 |
| ISW80-125A |
27 44.8 54 |
7.5 12.4 15 |
18 16 14 |
60 72 71 |
2900 |
4.0 |
3.0 |
| ISW80-160 |
30 50 60 |
8.3 13.9 16.7 |
36 32 29 |
63 72 72 |
2900 |
7.5 |
3.0 |
| ISW80-160A |
28 46.8 56 |
7.78 13.0 15.6 |
32 28 26 |
62 70 72 |
2900 |
7.5 |
3.0 |
| ISW80-160B |
26 43.2 52 |
7.2 12.0 14.4 |
27 24 22 |
60 70 71 |
2900 |
5.5 |
3.0 |
| ISW80-200 |
30 50 60 |
8.3 13.9 16.7 |
53 50 47 |
54 68 70 |
2900 |
15.0 |
3.0 |
| ISW80-200A |
28 46.8 56 |
7.78 13.0 15.6 |
46 44 42 |
53 68 70 |
2900 |
11.0 |
3.0 |
| ISW80-200B |
26 43 52 |
7.2 11.9 14.4 |
40 37 34 |
52 66 68 |
2900 |
7.5 |
3.0 |
| ISW80-250 |
30 50 60 |
8.3 13.9 16.7 |
84 80 75 |
51 62 63 |
2900 |
22.0 |
3.0 |
| ISW80-250A |
28 46.8 56 |
7.78 13.0 15.6 |
73 70 65 |
50 61 61 |
2900 |
18.5 |
3.0 |
| ISW80-250B |
26 43 52 |
7.2 11.9 14.4 |
63 60 56 |
50 60 60 |
2900 |
15.0 |
3.0 |
| ISW80-315 |
30 50 60 |
8.33 13.9 16.7 |
128 125 123 |
41 54 57 |
2900 |
37.0 |
3.0 |
| ISW80-315A |
27.5 45.8 55 |
7.64 12.7 15.3 |
107.5 105 103 |
40 53 54 |
2900 |
30.0 |
3.0 |
| ISW80-315B |
26 43 52 |
7.2 11.9 14.4 |
96.5 93 91 |
41 53 53 |
2900 |
30.0 |
3.0 |
| ISW80-315C |
24.7 41.3 49.5 |
6.86 11.5 3.8 |
87 85 83.6 |
51 |
2900 |
22 |
3.0 |
| ISW80-350 |
35 50 65 |
9.72 13.9 18.1 |
165 150 137 |
49 55 57 |
2900 |
55 |
3.0 |
| ISW80-350A |
32.5 46.8 60.5 |
9.0 13.0 16.8 |
155 142 135 |
48 53 50 |
2900 |
45 |
3.0 |
| ISW80-350B |
31 44.5 58 |
8.6 12.4 16.1 |
140 135 125 |
47 52 55 |
2900 |
37 |
3.0 |
| ISW80-350C |
24 40 48 |
6.66 11.1 14.4 |
99.8 96 93.5 |
46 |
2900 |
30 |
3.0 |
| ISW80-100(I) |
60 100 120 |
16.7 27.8 33.3 |
14 12.5 11 |
65 76 75 |
2900 |
5.5 |
4.5 |
| ISW80-100(I)A |
54 89 108 |
15 24.7 30 |
11 10 8.9 |
63 75 74 |
2900 |
4.0 |
4.5 |
| 型号 | 流量 Q | 扬程 (m) | 效率 (％) | 转速 (r/min) | 电机功率(kW) |
允许汽蚀余量(m) |
|
| (m3/h) | (L/s) | ||||||
| ISW80-125(I) |
60 100 120 |
16.7 27.8 33.3 |
24 20 16.5 |
66 76 75 |
2900 |
11.0 |
4.5 |
| ISW80-125(I)A |
54 89 108 |
15 24.7 30 |
19 16 13 |
63 75 72 |
2900 |
7.5 |
4.5 |
| ISW80-160(I) |
60 100 120 |
16.7 27.8 33.3 |
36 32 28 |
70 78 75 |
2900 |
15.0 |
4.5 |
| ISW80-160(I)A |
56 93.5 112 |
15.5 26 31.1 |
31 28 24 |
68 76 73 |
2900 |
11.0 |
4.5 |
| ISW80-160(I)B |
52 86.4 104 |
14、4 24 28.9 |
26.5 24 20.5 |
67 75 74 |
2900 |
11.0 |
4.5 |
| ISW80-200(I) |
60 100 120 |
16.7 27,8 33.3 |
54 50 47 |
64 74 75 |
2900 |
22.0 |
4.0 |
| ISW80-200(I)A |
56 93.5 112 |
15.5 26 31.1 |
47 44 41 |
65 73 73 |
2900 |
18.5 |
4.0 |
| ISW80-200(I)B |
52 86.4 104 |
14.4 24 28.9 |
41 37 35 |
62 72 72 |
2900 |
15.0 |
4.0 |
| ISW80-250(I) |
60 100 120 |
16.7 27.8 33.3 |
87 80 74.5 |
61 72 73 |
2900 |
37.0 |
4.0 |
| ISW80-250(I)A |
56 93.5 112 |
15.5 26 31.1 |
75 70 65 |
60 71 72 |
2900 |
30.0 |
4.0 |
| ISW80-250(I)B |
52 86.4 104 |
14.4 24 28.9 |
65 60 56 |
60 70 72 |
2900 |
30.0 |
4.0 |
| ISW80-315(I) |
60 100 120 |
16.7 27.8 33.3 |
133 125 118 |
55 66 67 |
2900 |
75.0 |
4.0 |
| ISW80-315(I)A |
57.3 95.5 114.6 |
15.9 26.5 31.8 |
121 114 107 |
54 66 67 |
2900 |
55.0 |
4.0 |
| ISW80-315(I)B |
54.5 90.8 109 |
15.1 25.2 30.2 |
109.5 103 97.2 |
52 65 65 |
2900 |
45.0 |
4.0 |
| ISW80-315(I)C |
49.5 82.5 99 |
13.7 22.9 27.5 |
90 85 80 |
63 |
2900 |
37 |
4.0 |
| ISW100-100 |
60 100 120 |
16.7 27.8 33.3 |
14 12.5 11 |
65 76 75 |
2900 |
5,5 |
4.5 |
| ISW100-100A |
54 89 108 |
15 24.7 30 |
11 10 8.9 |
63 75 74 |
2900 |
4.0 |
4.5 |
| ISW100-125 |
60 100 120 |
16.7 27.8 33.3 |
24 20 16.5 |
66 76 75 |
2900 |
11.0 |
4.5 |
| ISW100-125A |
54 89 108 |
15 24,7 30 |
19 16 13 |
56.3 75 72 |
2900 |
7.5 |
4.5 |
| ISW100-160 |
60 100 120 |
16.7 27.8 33.3 |
26 32 28 |
70 78 75 |
2900 |
15.0 |
4.5 |
| ISW100-160A |
56 93.5 112 |
15.5 26 31.1 |
31 28 24 |
68 76 73 |
2900 |
11.0 |
4.5 |
| ISW100-160B |
52 86.4 104 |
14.4 24 28.9 |
26.5 24 20.5 |
67 75 74 |
2900 |
11.0 |
4.0 |
| ISW100-200 |
60 100 120 |
16.7 27.8 33.3 |
54 50 47 |
64 74 75 |
2900 |
22.0 |
4.0 |
| ISW100-200A |
56 93.5 112 |
15.5 26 31.1 |
47 44 41 |
65 73 73 |
2900 |
18.5 |
4.0 |
| ISW100-200B |
52 86.4 104 |
14.4 24 28.9 |
41 37 35 |
62 72 72 |
2900 |
15 |
4.0 |
| ISW100-250 |
60 100 120 |
16,7 27.8 33.3 |
87 80 74.5 |
61 72 73 |
2900 |
37 |
4.0 |
| ISW100-250A |
56 93.5 112 |
15.5 26 31.1 |
75 70 65 |
60 71 72 |
2900 |
30 |
4.0 |
| ISW100-250B |
52 86.4 104 |
14.4 24 28.9 |
65 60 56 |
60 70 72 |
2900 |
30 |
4.0 |
| ISW100-315 |
60 100 120 |
16.7 27.8 33.3 |
133 125 118 |
55 66 67 |
2900 |
75 |
4.0 |
| ISW100-315A |
57.3 95.5 114.6 |
15.9 26.5 31.8 |
121 114 107 |
54 66 67 |
2900 |
55 |
4.0 |
| ISW100-315B |
54.5 90.8 109 |
15,1 25.2 30.2 |
109.5 103 97.2 |
52 65 65 |
2900 |
45 |
4.0 |
